Rectified Linear Unit

The Rectified Linear Unit (ReLU) is a commonly used activation function in neural networks. It is defined mathematically as:

$$f(x)=max(0,x)$$

Where:

• $x$ is the input to the function.
• $f(x)$ is the output of the ReLU function.

In other words, ReLU returns the input $x$ if it is positive, and returns zero otherwise.

Live plot

The following is a live plot implemented in javascript (feel free to inspect the element for the implementation)

x = 0

f ( 0 ) = 0

Python implementation

Here’s the implementation of ReLU in Python:

import numpy as np
import matplotlib.pyplot as plt


# Define the ReLU function
def relu(x):
    return np.maximum(0, x)


# Generate x values
x = np.linspace(-5, 5, 100)


# Compute the corresponding y values using ReLU
y = relu(x)


# Plot the ReLU function
plt.plot(x, y, label='ReLU', color='blue')


# Add labels and title
plt.xlabel('x')
plt.ylabel('ReLU(x)')
plt.title('ReLU Function')


# Add a grid
plt.grid(True)


# Add a legend
plt.legend()


# Show the plot
plt.show()

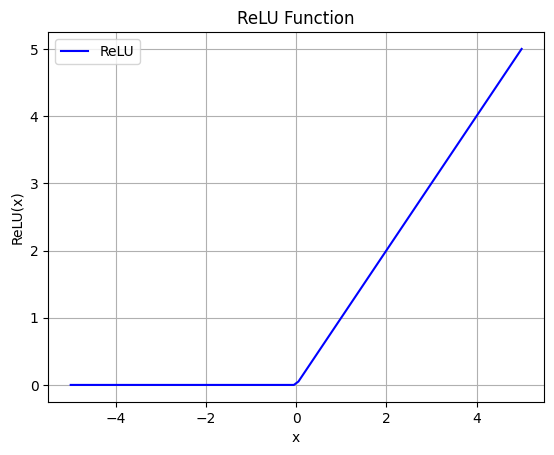

Output:
